Cowens




Type Bunds
Fixed / portable Portable
Suitability Drums
IBCs
Capacity (litres) 1000
Dimensions (mm) 1300mm wide, 1400mm deep

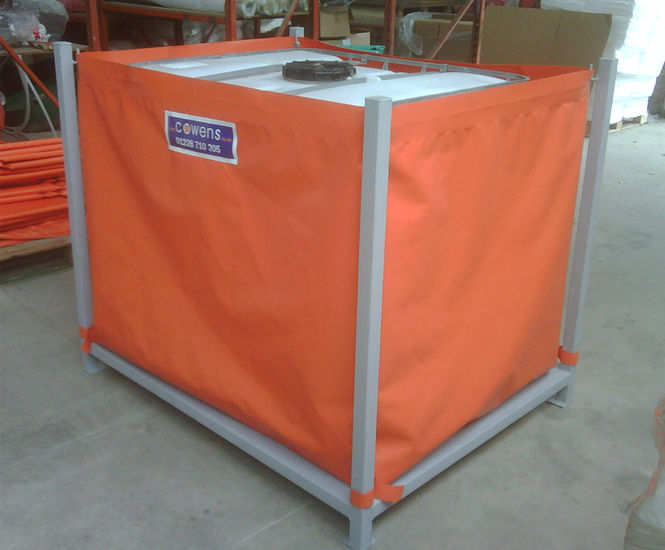

Cowens offers a portable bund for IBCs and up to five drums.

It provides bunding from the moment an IBC arrives on site. During transit around the site and in storage, the IBC is fully bunded against valve or container failure or tampering.

The stillage has a robust steel construction, with four-side fork-lift truck entry. A pallet truck can also lift the unit.

The bund is made from flexible but strong PVC, enabling the material to be lowered and tucked under the unit during IBC loading, and then lifted and attached to the stillage uprights for bunding.

The unit has been tested with 110% x 1000 litres of water. Whilst the water level equalises out at only one third of the height of the bund wall, the extra material provides some containment for punctures in the IBC that might otherwise spray over the top of the bund wall. A lower bund wall can be ordered if preferred.

With a reinforced PVC base, the bund will last indefinitely, but is completely detachable and replaceable should an accident occur.


Cowens offers a portable bund for IBCs and up to five drums.

It provides bunding from the moment an IBC arrives on site. During transit around the site and in storage, the IBC is fully bunded against valve or container failure or tampering.

The stillage has a robust steel construction, with four-side fork-lift truck entry. A pallet truck can also lift the unit.

The bund is made from flexible but strong PVC, enabling the material to be lowered and tucked under the unit during IBC loading, and then lifted and attached to the stillage uprights for bunding.

The unit has been tested with 110% x 1000 litres of water. Whilst the water level equalises out at only one third of the height of the bund wall, the extra material provides some containment for punctures in the IBC that might otherwise spray over the top of the bund wall. A lower bund wall can be ordered if preferred.

With a reinforced PVC base, the bund will last indefinitely, but is completely detachable and replaceable should an accident occur.
