Chemicals / parameters Redox
Suitability Process liquids
Type Portable
System type Sensors
Features Alarm trip
Datalogging
Self cleaning
Weatherproof

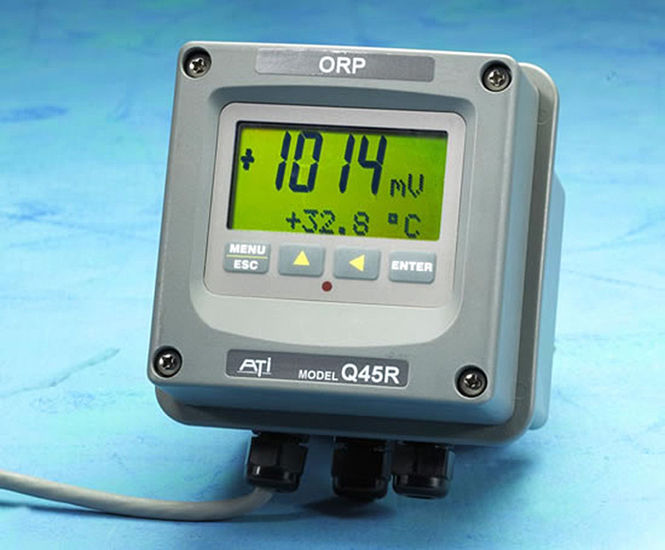

The Q45P/R AutoClean pH/ORP monitor combines differential pH/ORP sensors with the air blast AutoClean system that keeps with sensor clean without manual intervention, enabling operation in locations where contamination and fouling causes standard monitors to fail.

It is designed for al industrial and municipal applications.

The system features a number of diagnostics to alarm the user should an electrode break, the sensor seal integrity fail, the integral air temperature fair or the AirClean system fail.

Technical information:

  • Measuring range: 0 to 14 pH, -1000 to +2000 mV
  • Sensitivity: 0.002 pH; 0.2 mV
  • Stability: 0.02 pH; 2 mV (per 24 hours, non-cumulative)
  • Temperature range: -5 to 95°C (23 to 203ºF)

Technical information, monitor:

  • Sensitivity: 0.05% of span
  • Stability: 0.05% of span per 24 hours
  • Sensor types: Q-Series pH or ORP with preamp, 5-wire input; combination-style pH or ORP with temperature compensation
  • Temperature drift: Span or zero, 0.02% of span/ºC


The Q45P/R AutoClean pH/ORP monitor combines differential pH/ORP sensors with the air blast AutoClean system that keeps with sensor clean without manual intervention, enabling operation in locations where contamination and fouling causes standard monitors to fail.

It is designed for al industrial and municipal applications.

The system features a number of diagnostics to alarm the user should an electrode break, the sensor seal integrity fail, the integral air temperature fair or the AirClean system fail.

Technical information:

  • Measuring range: 0 to 14 pH, -1000 to +2000 mV
  • Sensitivity: 0.002 pH; 0.2 mV
  • Stability: 0.02 pH; 2 mV (per 24 hours, non-cumulative)
  • Temperature range: -5 to 95°C (23 to 203ºF)

Technical information, monitor:

  • Sensitivity: 0.05% of span
  • Stability: 0.05% of span per 24 hours
  • Sensor types: Q-Series pH or ORP with preamp, 5-wire input; combination-style pH or ORP with temperature compensation
  • Temperature drift: Span or zero, 0.02% of span/ºC
