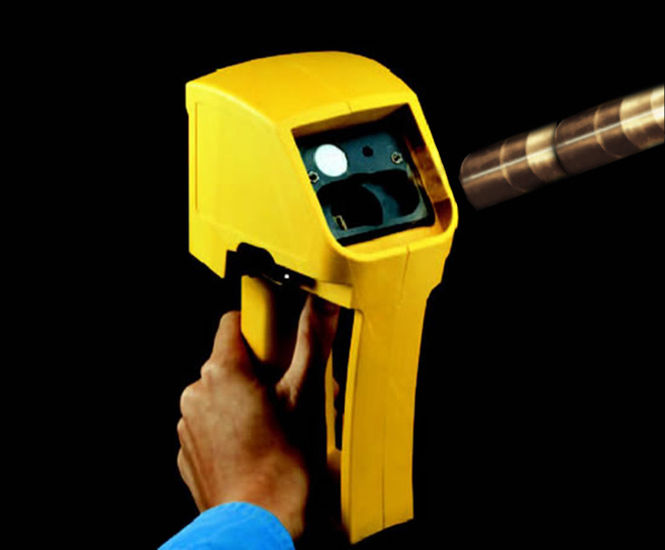

The C16 PortaSens II portable gas leak detector is a versatile tool for performing regular leak checks in gas storage areas, around process equipment and piping, or in confined spaces prior to entry.

Designed for easy one-hand operation, the detector contains an internal sample pump and a flexible sampling wand to allow pinpoint location of the source of leakage. It can measure a wide variety of gases by inserting the relevant sensor for the gas.

It can be used to measure over 30 different gases or vapours by simply changing to the appropriate sensor for the gas and reducing the need to purchase individual detectors for each type of gas. Sensors can be changed quickly and easily, without the need for calibration.

A large LCD display insures that measured values are easily visible, and a back-light for the display ensures readability in low or no light conditions.

Technical information:

  • Accuracy: Sensor dependent but generally ± 5% of value (limited by cal. gas)
  • Sensitivity: 1% of sensor module range
  • Outputs: RS-232 output of stored gas values 0-1 VDC analogue (requires optional output cable)
  • Memory: 12,000 data points
  • Storage interval: Programmable from 1 minute to 60 minutes
  • Typical capacity: 8 days at 1 minute storage interval
  • Alarms: Three concentration alarms (caution, warning, and alarm with adjustable setpoints), Low flow and low battery alarms, Alarms displayed on LCD & Indicated by audible beeper.
