Slim Style aluminium pumps are suitable for use in a wide range of industrial applications, including chemical, cosmetic, paints, pharmeutical, adhesive and hygienic processes.

The product was voted winner of the Food Hygiene Award for Food Processing and Manufacture.

Max flow rate: 454 l/min
Pump inlet/outlet size: 3"
Diaphragm diameter: 12"

Slim Style pumps are part of Flotronics F Series of air-operated double diaphragm pumps. These pumps are suitable for both simple transfer and continuous duty process applications using PTFE faced multi-million cycle diaphragms as standard.

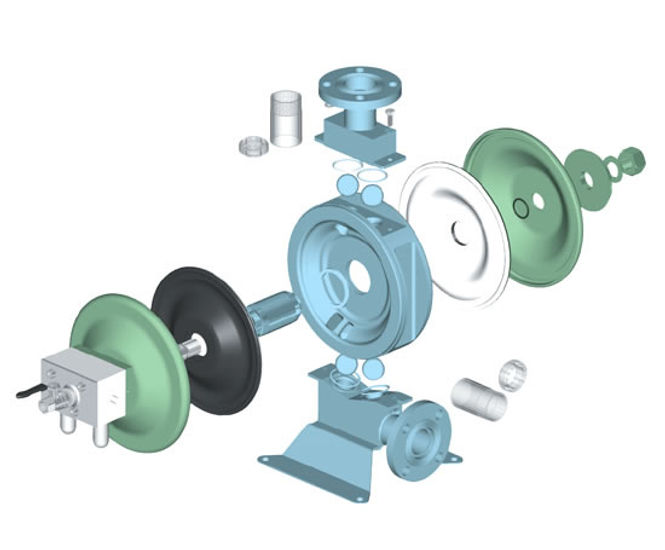

F Series pumps use Flotronics one-nut design. Each pump is held together by one nut on the opposite side of the pump to the external air valve.

This design allows in-line diaphragm replacement to be accomplished in less than 15 minutes, with a complete stripdown and rebuild possible in less than 20 minutes.
