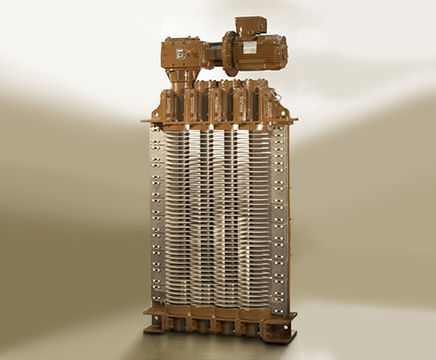

Discreen is a self-cleaning screening system made from intermeshing discs on rotating shafts, designed to remove up to 95% of solids from water flows. Available with 2.5mm, 5mm, or 9mm aperture sizes, it fits a range of channel widths and depths. Handles flows up to 20,000m³/hr or 88,057gal/min.

  • Self-cleaning screen for removing solids from water flows
  • Intermeshing discs eliminate manual raking and secondary handling
  • Low rotation speed reduces abrasion and wear
  • Consistent low head loss during operation
  • Easy maintenance with individual disc replacement
  • Screening capability can be adjusted for smaller solids
  • Option to combine with a muncher to keep residue in main flow

Applications

  • Screening solids from water in channels of varying widths and depths

Dimensions

Capacity up to 20,000m³/hr

Capacity up to 88,057gal/min

Options and variations

2.5mm, 5mm, or 9mm aperture sizes

Maintenance

Individual discs can be replaced for low-cost maintenance
