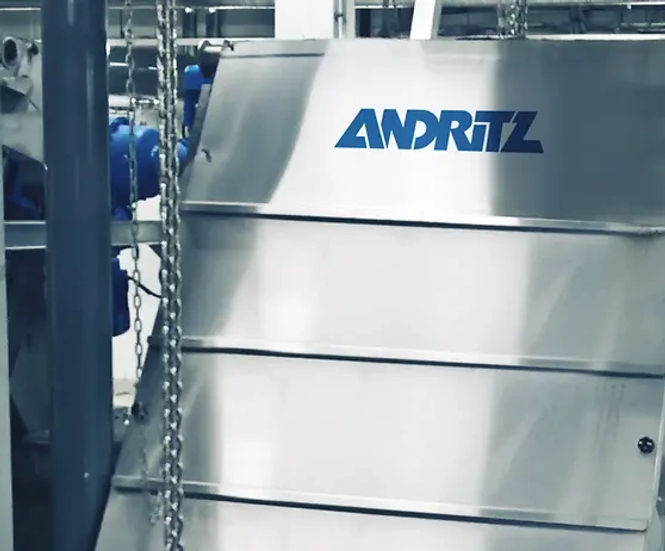

ANDRITZ Aqua-Screen coarse and fine screens are made from stainless steel for solid separation in municipal and industrial wastewater treatment plants. Fine screens remove suspended solids at the headworks to protect downstream equipment and improve plant efficiency. Aqua-Screen T uses a toothing system for two-dimensional screening, while Aqua-Screen P uses perforated plates with circular meshes. Both types use a modular frame for fast front access and easy filter element replacement in under 30min.

  • Screening system for removing solids from wastewater streams
  • Modular frame allows quick filter element changes from the front
  • Automated cleaning with spray bars and rotating brush maintains throughput
  • ISM system monitors rail wear and chain tension for preventive maintenance
  • Two screening types: T (toothing system) and P (perforated plate)
  • Filter elements can be replaced in less than 30min
  • Made from 304L or 316L stainless steel for long service life

Applications

  • Municipal and industrial wastewater treatment plants

Materials

304L stainless steel

316L stainless steel

Options and variations

Aqua-Screen T: toothing system

Aqua-Screen P: perforated plate system

Performance

Filter element replacement in less than 30min

Mesh/perforation sizes from 1–15mm

Maintenance

Front access for fast filter element changes

ISM system for preventive maintenance on large models
