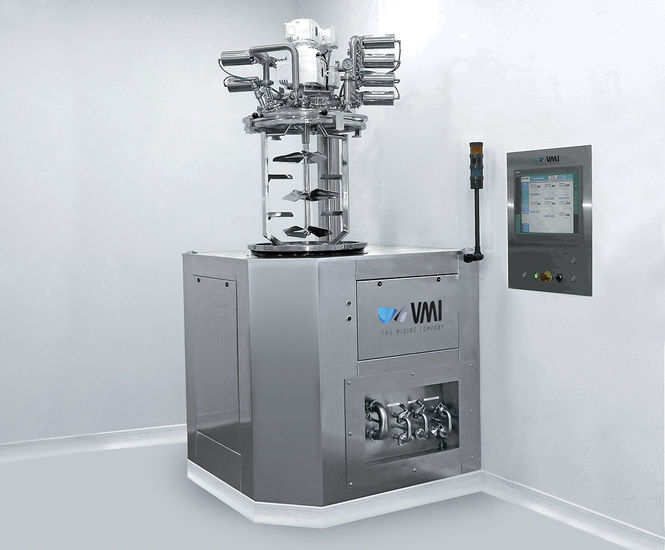

VMI TRIMIX mixing system
The VMI TRIMIX is a complete system for the manufacturing of creams and pastes. With options for an integrated vacuum system, wax melting, heating, and cooling, the TRIMIX can be used as a standalone mixer or part of a larger system The integrated mixing tools give three independently controllable actions with the surface scraper, rotor stator and
The VMI TRIMIX is a complete system for the manufacturing of creams and pastes. With options for an integrated vacuum system, wax melting, heating, and cooling, the TRIMIX can be used as a standalone mixer or part of a larger system
Principle of operation
The integrated mixing tools give three independently controllable actions with the surface scraper, rotor stator and pumping impeller.
Powders and liquids can be introduced from above or directly into the rotor stator high shear head under vacuum.
Internal circulation from the pumping impeller ensures all product is evenly mixed and is presented to the shear head.
Surface scraping blades ensure interchange of product at the vessel wall giving efficient heating or cooling as required
Key features
No external recirculation loop gives full control of mixing and minimises losses
Designed for extremely high product recovery
Fully scalable from TRILAB
Working volumes up to 20,000 litres
Premix vessels can be integrated with a range of mixing tools
Vacuum for process and for product introduction
Designed for easy clean and simple removal of tooling
Typical applications
- Viscous, pasty products
- Pharmaceutical, cosmetic, food and chemical creams and pastes
