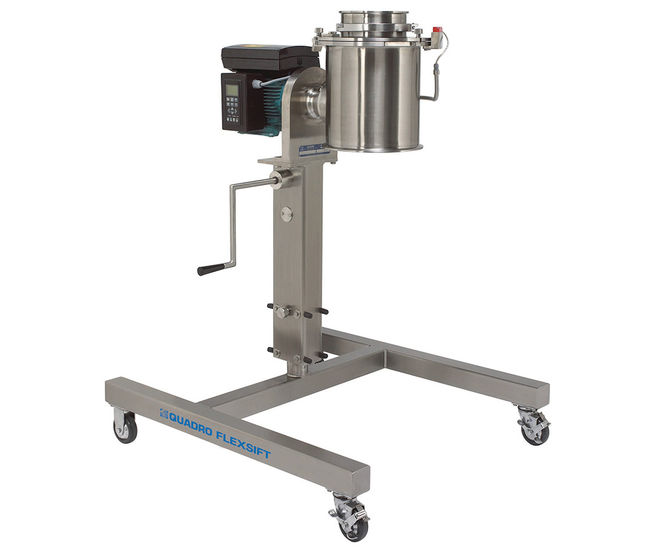

Quadro® S20 Flexsift
Based on the established Comil U20 platform, the Quadro® S20 Flexsift gives high capacity safety screening and delumping. Applications include size reduction, and powder and capsule handling. The Quadro® Sifter pre-screens material before entering downstream equipment, protecting the final processed product from contamination and preventing damage
Based on the established Comil U20 platform, the Quadro® S20 Flexsift gives high capacity safety screening and delumping. Applications include size reduction, and powder and capsule handling.
The Quadro® Sifter pre-screens material before entering downstream equipment, protecting the final processed product from contamination and preventing damage caused by foreign material entering the process.
• Principle of operation The infeed product is introduced into the 360° screen chamber, the rotation of which causes the powder to pass through the screen whilst unwanted oversize material is retained within the screen.
Agglomerated material can be delumped using a breaker bar, ensuring maximised product recovery without modifying the core particle size.
Unwanted/tramp materials can then be removed at the end of the process
Key features
High capacity screening.
Compact footprint compared to conventional sieve decks
Low noise
Modular design system for integration into new or existing processes
No vibration
Bolted or TriClamp construction for high levels of containment
