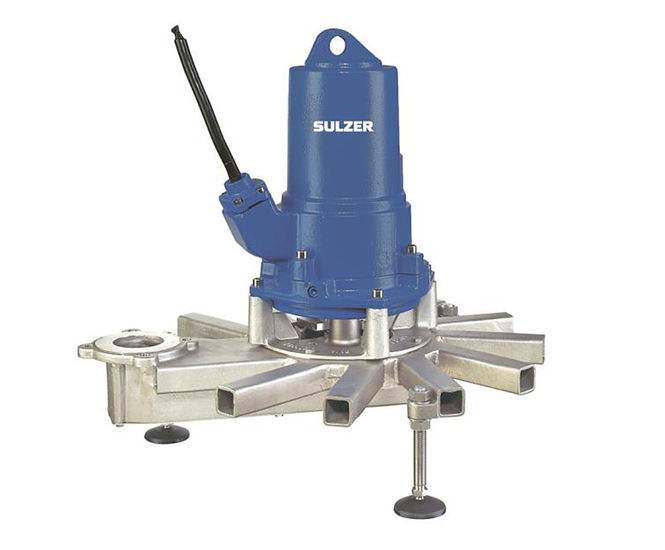

Submersible aerator type ABS XTA XTAK
ABS XTA XTAK are self-aspirating submersible aerators for wastewater and water treatment in municipal and industrial plant. Applications include: mixing and equalising basins; activated sludge basins and SBR reactors; sludge tanks at water depths from 2-9m (7–30 ft). ABS XTA XTAK units are free-standing on the bottom of the basin and can be installed without
ABS XTA XTAK are self-aspirating submersible aerators for wastewater and water treatment in municipal and industrial plants.
Applications
Mixing and equalising basins
Activated sludge basins and SBR reactors
Sludge tanks at water depths from 2-9m (7–30 ft)
ABS XTA XTAK units are free-standing on the bottom of the basin and can be installed without emptying the basin. For maintenance and inspection work the aerator is lifted by a mobile crane.
The aerators are characterised by low noise levels and no aerosol formation, and can be operated in tanks with between 2m and 6m water depth.
The hydraulic parts are made of stainless steel and then passivated. This ensures long life and effective operating even in highly corrosive liquids. In order to increase the wear resistance of heavily loaded parts, it is possible to add an additional galvanic coating.
