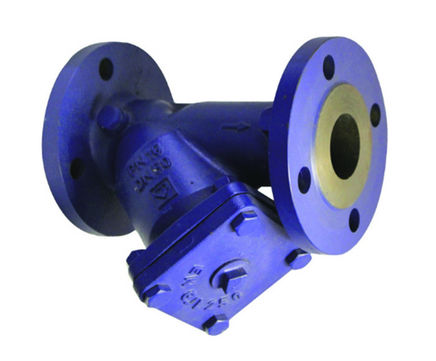

Cast iron strainers

The cast iron strainer is available in a range of sizes: 50, 65, 80, 100, 125, 150, 200, 250 and 300mm. Respective weights are: 11, 16, 21, 28, 38, 60, 102, 160 and 220kg. It has a pressure/temperature rating of 16 bar at -10 to 120°C, or 11 bar at 220°C. The strainer is flanged to BS EN 1092-2 PN16. Test pressure: Shell 24 bar.
