Media Water
Valve type Needle valves
Construction Cast iron
Steel
Max. pressure (bar) 50
Min. connection size (mm) 150
Max. connection size (mm) 2500

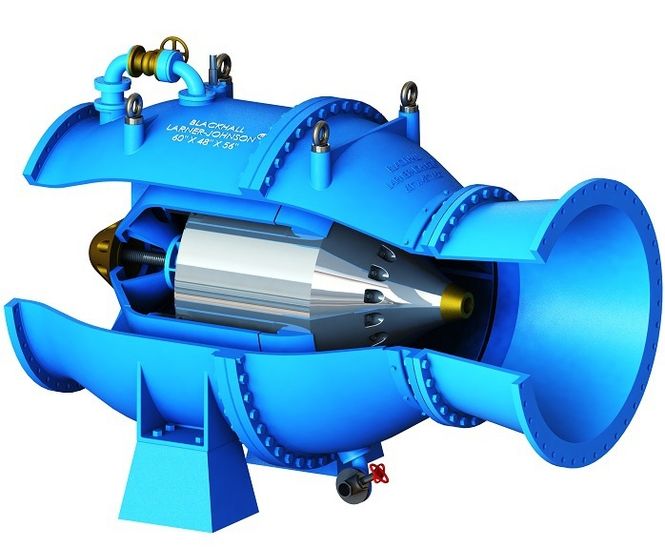

The Larner Johnson needle valve is used for free discharge control at pressures above that of the Fixed Cone Valve. The valve can also be used for in-line pressure or flow control applications and offers fine adjustment over its full range.

The valve is made to a heavy-duty design and can be constructed in cast iron and cast steel. It has a wide metal-to-metal seat design for reliable and durable shut-off. All parts of the valve are circular, making it free from distortion under high pressures.

It has a medium velocity discharge capability (up to 12m/s).

Features:

  • Accurate pressure control capabilities
  • Accurate flow control capabilities
  • Pilot-balanced operation (low operating power requirements)
  • Low maintenance and long life

Options:

  • Various discharge port (characteristic) options available
  • Anti-cavitation features available (air belts)
  • Jet dispersal option


The Larner Johnson needle valve is used for free discharge control at pressures above that of the Fixed Cone Valve. The valve can also be used for in-line pressure or flow control applications and offers fine adjustment over its full range.

The valve is made to a heavy-duty design and can be constructed in cast iron and cast steel. It has a wide metal-to-metal seat design for reliable and durable shut-off. All parts of the valve are circular, making it free from distortion under high pressures.

It has a medium velocity discharge capability (up to 12m/s).

Features:

  • Accurate pressure control capabilities
  • Accurate flow control capabilities
  • Pilot-balanced operation (low operating power requirements)
  • Low maintenance and long life

Options:

  • Various discharge port (characteristic) options available
  • Anti-cavitation features available (air belts)
  • Jet dispersal option
