Media Water
Valve type Gate / knife valves
Construction Ductile iron
Min. connection size (mm) 200
Max. connection size (mm) 3000

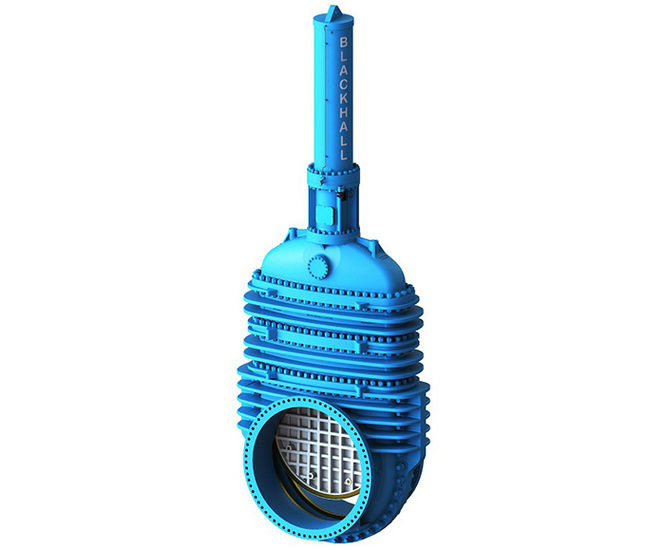

Parallel faced gate valves are used for pipeline isolation in the water industry. Typical applications include pump suction, pump discharge and upstream control valve isolation.

The valve minimises head loss in open positions and avoids cavitation/vibration with the gate in all positions.

Features:

  • Positive seal when closed.
  • Gate guides integrally cast.
  • Back seating permits repacking of valve under pressure.
  • Seat face pins.
  • Inspection covers enabling endoscopic camera inspection.
  • Integral scour valve.
  • Large bore bypass.

Options:

  • Clockwise closed/open operation.
  • Can be actuated manually, geared or electrically.
  • Open/closed indicator


Parallel faced gate valves are used for pipeline isolation in the water industry. Typical applications include pump suction, pump discharge and upstream control valve isolation.

The valve minimises head loss in open positions and avoids cavitation/vibration with the gate in all positions.

Features:

  • Positive seal when closed.
  • Gate guides integrally cast.
  • Back seating permits repacking of valve under pressure.
  • Seat face pins.
  • Inspection covers enabling endoscopic camera inspection.
  • Integral scour valve.
  • Large bore bypass.

Options:

  • Clockwise closed/open operation.
  • Can be actuated manually, geared or electrically.
  • Open/closed indicator
