Media Water
Valve type Globe valves
Construction Titanium
Min. connection size (mm) 15
Max. connection size (mm) 600

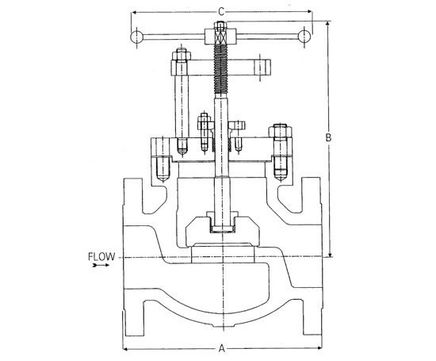

Blackhall titanium and exotic alloy globe valves Series 4200 are designed for marine applications.

They feature an outside-screw rising stem, a rising handwheel, a bolted bonnet and a bolted gland.

Technical data
• Flanges to ANSI B 16.5 and BS 1560 raised face.
• Valve design and shell wall thickness in accordance to ANSI B. 16.34.
• Face to face in accordance with ANSI B. 16.10.

Options
• Drain plug.
• Renewable soft seat.
• Renewable body seats.
• Gearbox operation recommended for valves 8" (DN 200 and above).
• Hydraulic, electric and pneumatic actuator options.
• Live loaded glands.
• Flanges and end connections: butt weld, socket weld and screwed.
• Materials to customer specification.
• "Y" Type and angle pattern valves on request.
• Larger valves on request.

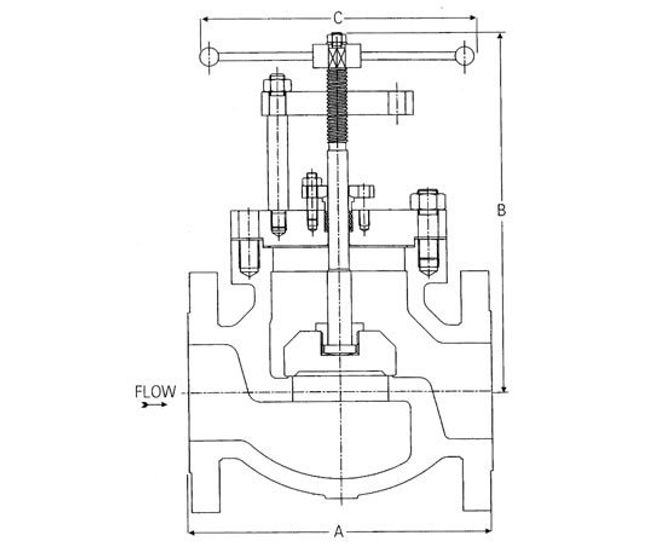

Blackhall titanium and exotic alloy globe valves Series 4200 are designed for marine applications.

They feature an outside-screw rising stem, a rising handwheel, a bolted bonnet and a bolted gland.

Technical data
• Flanges to ANSI B 16.5 and BS 1560 raised face.
• Valve design and shell wall thickness in accordance to ANSI B. 16.34.
• Face to face in accordance with ANSI B. 16.10.

Options
• Drain plug.
• Renewable soft seat.
• Renewable body seats.
• Gearbox operation recommended for valves 8" (DN 200 and above).
• Hydraulic, electric and pneumatic actuator options.
• Live loaded glands.
• Flanges and end connections: butt weld, socket weld and screwed.
• Materials to customer specification.
• "Y" Type and angle pattern valves on request.
• Larger valves on request.
