Media Chemicals / process liquids
Food / drink
Process gases
Steam
Water
Valve type Angle seat valves
Construction Brass
Bronze
Stainless steel
Max. pressure (bar) 16
Min. temperature (deg. C) -10
Max. temperature (deg. C) 180
Min. connection size (mm) 10
Max. connection size (mm) 65

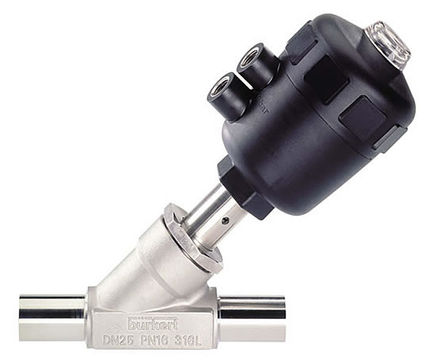

Bürkerts externally piloted Type 2000 angle-seat valve is used within heat exchange systems in the food and beverage, pharmaceutical and biotechnology industries.

It is versatile, and is suited to media including water, alcohol, oils, fuel, hydraulic fluids, salt solution, alkali solutions, organic solvents, steam, the Type 2000.

Features

  • Excellent sealing integrity
  • Long cycle life
  • Available with a threaded or weld-end body, in stainless steel or gunmetal
  • 2/2-way body featuring high flow characteristics
  • Pressures to 16 bar
  • Temperatures from -10 to +180 °C

Operation

The Type 2000 valve is operated with a single or double-acting piston actuator, which is available in PA and PPS (depending on ambient temperature).

Accessories

Can be fitted with modular accessories for position indication, stroke limitation or manual override.

Typical system accessories include the Type 6012 pilot valve or 6014 banjo, remote pilot valve panels and silencers, fittings, tubing and other pneumatic components.


Bürkerts externally piloted Type 2000 angle-seat valve is used within heat exchange systems in the food and beverage, pharmaceutical and biotechnology industries.

It is versatile, and is suited to media including water, alcohol, oils, fuel, hydraulic fluids, salt solution, alkali solutions, organic solvents, steam, the Type 2000.

Features

  • Excellent sealing integrity
  • Long cycle life
  • Available with a threaded or weld-end body, in stainless steel or gunmetal
  • 2/2-way body featuring high flow characteristics
  • Pressures to 16 bar
  • Temperatures from -10 to +180 °C

Operation

The Type 2000 valve is operated with a single or double-acting piston actuator, which is available in PA and PPS (depending on ambient temperature).

Accessories

Can be fitted with modular accessories for position indication, stroke limitation or manual override.

Typical system accessories include the Type 6012 pilot valve or 6014 banjo, remote pilot valve panels and silencers, fittings, tubing and other pneumatic components.
