Media Air
Chemicals
Food / drink
Fuel
Process gases
Steam
Water
Valve type Angle seat valves
Construction Stainless steel
Max. pressure (bar) 10
Min. temperature (deg. C) -10
Max. temperature (deg. C) 180
Min. connection size (mm) 13
Max. connection size (mm) 50

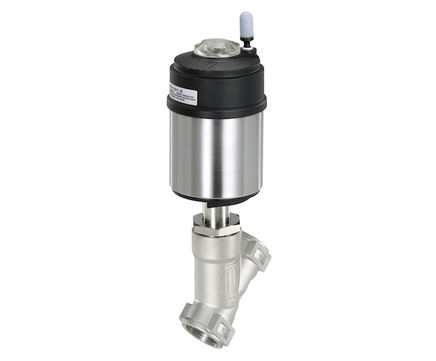

The 2100 is a modular angle-seat valve that can meet tough criteria for process environments. It is part of Bürkert's modular range of ELEMENT valves and sensors.

It is based around a proven self-adjusting spindle packing with V-seals.

The design enables the easy integration of automation modules (whether they are electrical / optical position feedback), pneumatic control units, an integrated fieldbus interface or an explosion-proof feedback.

Features

  • fully integrated system
  • compact and smooth design
  • integrated pneumatic lines
  • IP65/67 protection class
  • chemical resistance
  • stainless steel housing with threaded, clamp or weld connection

Benefits

  • High flow rate
  • High sealing integrity
  • Long service life
  • Easy integration of automation units with ELEMENT


The 2100 is a modular angle-seat valve that can meet tough criteria for process environments. It is part of Bürkert's modular range of ELEMENT valves and sensors.

It is based around a proven self-adjusting spindle packing with V-seals.

The design enables the easy integration of automation modules (whether they are electrical / optical position feedback), pneumatic control units, an integrated fieldbus interface or an explosion-proof feedback.

Features

  • fully integrated system
  • compact and smooth design
  • integrated pneumatic lines
  • IP65/67 protection class
  • chemical resistance
  • stainless steel housing with threaded, clamp or weld connection

Benefits

  • High flow rate
  • High sealing integrity
  • Long service life
  • Easy integration of automation units with ELEMENT
