Chemicals / parameters Conductivity
Temperature
Suitability Food / drink
Potable water
Process liquids
Wastewater / effluent
Type Fixed
System type Sensors
Features Waterproof
Accuracy (±%) 0.05 when when calibration is performed in a conductivity range close to that of the used solution.
Max. sample temperature (°C) 120, 135 or 150, depending on model

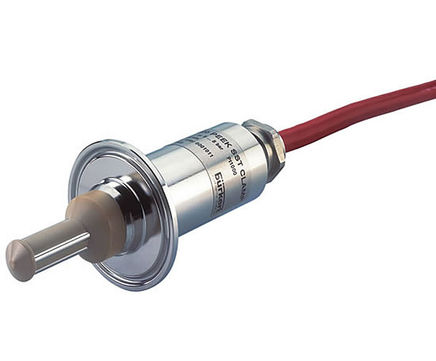

Burkerts Type 8221 conductivity sensor has a hygienic design and robust construction. It is suitable for demanding conditions in the food and beverage, pharmaceutical, biotechnology and the general chemical industries.

Features

The sensor has four-electrode technology that gives an extended measuring range from 0.1 – S...500 mS/cm. This eliminates the polarisation phenomena normally observed with two-electrode sensors.

The engineered design guarantees linearity over a wide conductivity range. An integrated Pt1000 temperature sensor is a standard feature of all versions.

CIP Applications

It is designed for applications subject to CIP (clean in place) operations, and its high-quality surface finish allows it to remain in situ even during steam sterilisation. This feature provides time and cost savings for the user, and allows phase detection across all transmitted media, including aggressive cleaning agents. It also guarantees transparency of the process at all times, and provides automatic protection for the user against expensive fluid handling errors.

All of the units wetted parts are FDA approved, and the range of process connection interfaces provide flexibility across a wide range of hygienic applications.


Burkerts Type 8221 conductivity sensor has a hygienic design and robust construction. It is suitable for demanding conditions in the food and beverage, pharmaceutical, biotechnology and the general chemical industries.

Features

The sensor has four-electrode technology that gives an extended measuring range from 0.1 – S...500 mS/cm. This eliminates the polarisation phenomena normally observed with two-electrode sensors.

The engineered design guarantees linearity over a wide conductivity range. An integrated Pt1000 temperature sensor is a standard feature of all versions.

CIP Applications

It is designed for applications subject to CIP (clean in place) operations, and its high-quality surface finish allows it to remain in situ even during steam sterilisation. This feature provides time and cost savings for the user, and allows phase detection across all transmitted media, including aggressive cleaning agents. It also guarantees transparency of the process at all times, and provides automatic protection for the user against expensive fluid handling errors.

All of the units wetted parts are FDA approved, and the range of process connection interfaces provide flexibility across a wide range of hygienic applications.
