Media Air
Chemicals / process liquids
Food / drink
Fuel
Process gases
Steam
Water
Valve type Angle seat valves
Construction Stainless steel
Min. temperature (deg. C) -10
Max. temperature (deg. C) 180
Min. connection size (mm) 13
Max. connection size (mm) 50

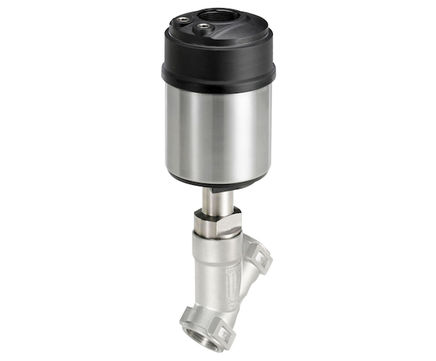

The 2300 angle-seat control valve is optimised for tough process environments.

It meets EHEDG hygienic engineering guidelines for materials compatibility, have smooth surfaces and external seals, and are resistant to cleaning solutions.

It is part of Burkert's range of ELEMENT valves, radar level sensors and analytical field transmitters, which work together as part of a modular programme. Products combine in an array of configurations to suit specific processes.
Benefits

They provide extremely compact integrated actuation without external air lines, and have a contactless, wear-free, analog displacement transmitter.

Simple and reliable drive adaptation is provided using automatic TEACH calibration between parts. An on-board air filter has integrated control air channels.

Additional features

  • close-tight cutoff
  • intuitive graphical interface with multilingual software
  • automatic parameterisation of the process controller using Process TUNE functions
  • access code security


The 2300 angle-seat control valve is optimised for tough process environments.

It meets EHEDG hygienic engineering guidelines for materials compatibility, have smooth surfaces and external seals, and are resistant to cleaning solutions.

It is part of Burkert's range of ELEMENT valves, radar level sensors and analytical field transmitters, which work together as part of a modular programme. Products combine in an array of configurations to suit specific processes.
Benefits

They provide extremely compact integrated actuation without external air lines, and have a contactless, wear-free, analog displacement transmitter.

Simple and reliable drive adaptation is provided using automatic TEACH calibration between parts. An on-board air filter has integrated control air channels.

Additional features

  • close-tight cutoff
  • intuitive graphical interface with multilingual software
  • automatic parameterisation of the process controller using Process TUNE functions
  • access code security
