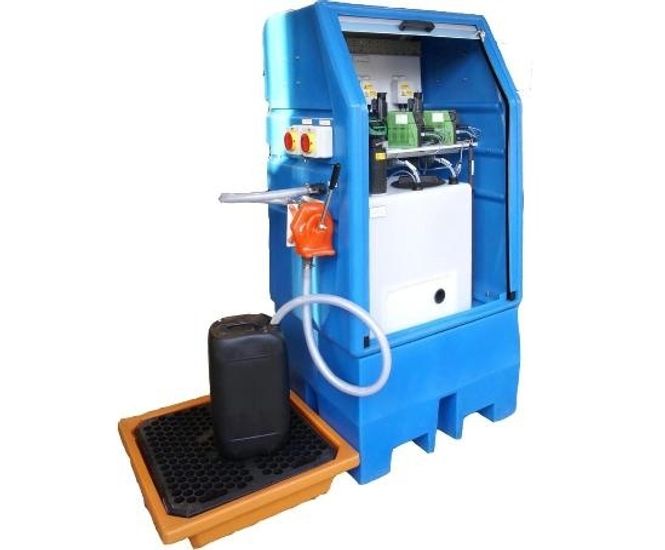

The DS200 is a fully enclosed chemical dosing unit with 200 litre storage capacity and an integral bund.

It is a fully enclosed chemical dosing system, comprising a weatherproof polyethylene rotationally moulded enclosure and an integral bund into which a 200 litre polyethylene storage tank is fitted. Single duty or duty/standby pumps can be fitted with dose rates up to 150 litres/h.

It is designed as a small-capacity packaged system for indoor or outdoor applications. Dosing pump and control options are available for dose rates from 0.004-150 l/h.

Various control options are available from simple manual control to full flow proportional automatic dosing with automatic duty/standby pump changeover.

Suction and delivery pipework can be dual-contained with outer sleeves connected directly to the unit. Any pipework leakage is detected by a switch in the bund.

Features
• Polyethylene enclosure, IP54 rated with integral 240 litre capacity bund
• 200 litre rotationally moulded storage tank
• Screw-off lid for direct chemical filling or proprietary fill connections and valves
• Grundfos Alldos Digital Dosing Pump(s) allowing direct operator entry of dose rate.
• Dose rates: as low as 0.025 l/h or up to 150 l/h.
