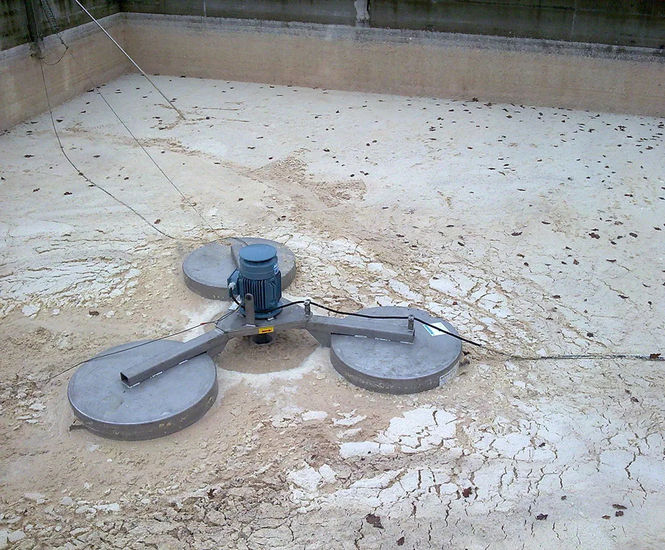

FRED Floatables Re-entrainment Device is designed for mixing and re-entraining floatable material in basins using downdraft flow and a dual action impeller, preventing settlement and crust formation without discharging from the basin. Made from AISI 304/316 stainless steel or special stainless steel, with float-mounted, vertical operation and surface drive options. Motor sizes range from 1.1 kW to 22 kW.

  • Mixes and re-entrains floatable material in basins

  • Dual action impeller for effective mixing

  • Non-clogging design for reliable operation

  • Easy to install and remove

  • Float-mounted for flexible water levels

  • Direct drive motors with 4–6 pole speed

  • Suitable for viscous and sludge bulking applications

Applications

Viscous and sludge bulking applications

Grease trap systems upstream of biological reactors

Sequencing batch reactor (SBR) systems

Basins requiring prevention of settlement and crust formation

Dimensions

Model

Power

D1 (mm)

D2 (mm)

L1(mm)

L2(mm)

H1(mm)

H2(mm)

Weight(kg)

0110-24

1,1

500

1625

1344

1474

446

910

85

0150-24

1,5

500

1625

1344

1474

461

925

92

0220-24

202

750

2350

1950

2136

550

1026

167

0300-24

3

750

2350

1950

2136

555

1031

172

0400-24

4

750

2350

1950

2136

605

1104

215

0550-24

5,5

750

2400

1988

2179

649

1188

220

0750-24

7,5

750

2400

1988

2179

659

1204

235

1100-24

11

850

2650

2200

2409

741

1449

322

1500-24

15

850

2650

2200

2409

741

1449

343

1850-24

18,5

950

2750

2300

2509

749

1491

422

2200-24

22

950

2750

2300

2509

549

1551

442

Materials

AISI 304/316 stainless steel or special stainless steel

Options and variations

Float-mounted only

Vertical operation only

Surface drive (fixed or variable water levels)

2 or 3 float options

Installation

Easy installation and removal
