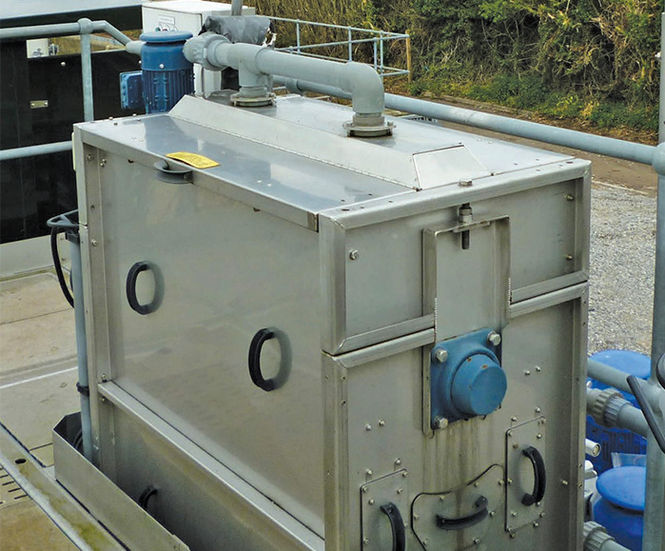

The ACE Band Screen delivers reliable screening up to 300 l/s and is designed, manufactured, installed and supported by the Haigh Engineering Company.

Thousands of Haigh screens have been installed in the UK and Ireland as a core proven framework solution for UK water PLCs.

Key features

  • 2, 3, 6mm 2D screen
  • Tested and certified at NSEF
  • Duty or duty/assist screen configurations
  • In-channel or prefabricated screening systems
  • Variable installed screen height
  • Class leading screen capture ratio: 79% (6mm)
  • Low installed head-loss
  • Low power consumption
  • Simple maintenance procedures
  • Replace all bandscreen plates individually in <2 hours
  • All maintenance without lifting unit out of channel
  • Compatible with a wide range of manufacturers' screening handling equipment via a launder trough

Technical details

  • Process input: process effluent containing solids.
  • Process output: process effluent with solids < hole size in two dimensions.
  • By-product produced: process solids in wash water at flow rate of 3 - 4 l/s.
  • Services required: 4 l/s wash water at 3 bar while running.
  • Capacity: 10-200 l/s.
  • Typical electric motor drive size: 0.55kW.
