Primary wastewater screening

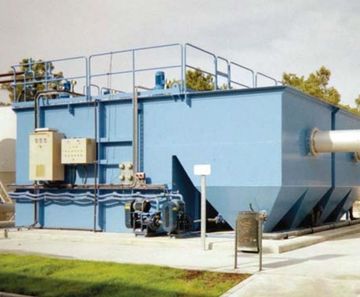

Actiflo™ is a compact, high-performance clarifier used for the treatment of water and municipal and industrial wastewater. It can eliminate up to > 99% turbidity, suspended solids and associated pollutants. Characterised by very short hydraulic residence time and high process stability, the process is fully automated and requires minimum maintenance

Screen gross solids and floatables at CSO sites with infrequent overflows. Though overflows may be infrequent, when they occur they are still damaging to the environment. The Hydro-Static® Screen offers an economically sustainable screen for combined sewer overflow sites with infrequent overflows, but at which environmental protection is still a

Remove, separate, classify and wash wastewater and process solids at a range of municipal and industrial treatment plants. The TeaCup® is a high-performance accelerated gravity grit removal system that has been the benchmark for high-performance headworks grit management since 1976. Optimised for grit collection, grit washing, sediment removal on

Multiflo™ clarifiers with lamella settlers are used for the clarification and polishing of water and the treatment of wastewater. Systems are compact and flexible, and can be used in small- to large-sized plants to treat any kind of water characteristics and pollutant loads. Multiflo™ Softening and Multiflo™ Carb can be used for softening and polishing to a high water quality

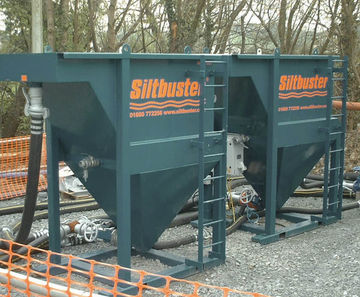

Siltbuster Lamella Settlement Tanks are mobile settlement units designed for continuous removal of suspended solids from water, using inclined lamella plates to maximise settlement area within a compact footprint. Units are made for rapid deployment, require no power, and can be linked for higher flow rates. Suitable for construction, industrial

Grit Decanter is a non-mechanical dewatering system designed to retain fine wastewater or industrial process grit with little water content, allowing for cost-effective disposal. An economical alternative to conventional dewatering systems, it is custom-designed to match local disposal truck configurations and is ideal for smaller treatment plants

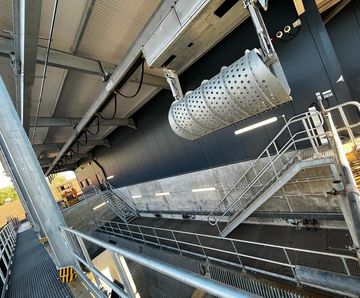

Weedscreen Cleaners from Aquatic Control Engineering are automated systems for removal of debris, vegetation, and floating waste from water intake screens. Units use grab or rake mechanisms to lift debris and deposit it into a skip or dump area. Payload options range from 210kg to 1500kg. Systems are custom designed for each site and can be

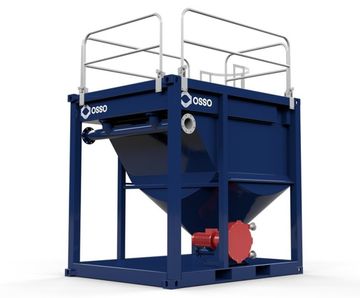

OSSO Solids Removal Tank SRT10 is a 10ft modular settlement tank designed to remove solids down to 18 microns using inclined lamella plate technology. Regularly used where discharge to sewer is allowed, this compact unit includes a rake drive and sludge transfer pump for easy treatment of groundwater and surface water: 10ft modular settlement tank

Althon pipe-mounted vermin grilles are manufactured in grade 304 stainless steel. These vermin grilles for pipes are hinged to allow passage in the direction of flow but will prevent rats and other vermin climbing up the pipe. Anti-rodent pipe-mounted gratings are fixed into the pipe. The standard range is available for pipework from 300–600mm

Colloide uses lamella settlers within its lamella clarifier systems, which greatly increases the clarifier capacity and enables a much greater flow to be treated in the same footprint as conventional clarification. Their design also ensures maximum efficiency in terms of upward flow velocities. The lamella settlers can be used in new builds and

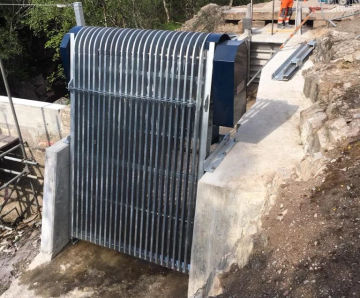

Back Raking Machines are self-contained units for debris removal at pumping stations and drainage systems. Compact design allows installation in small or retrofit sites. Chain-driven rake lifts debris up a built-in trash screen and deposits it away from the intake. Optional conveyor system moves waste directly to a skip for easy disposal

Robust, high-quality Micro Screens are a cost-effective and efficient way of continuously reducing levels of fine, suspended solids and phosphorous across a broad range of trade effluent and municipal wastewater treatment applications. They can be supplied as a new, stand-alone tertiary treatment solution or they can be fully integrated within an

Struvia™ phosphorus recovery system recovers and reuses phosphorus from wastewater and concentrated industrial water. Converts phosphorus in effluent into struvite crystals for use in fertilisers and animal feed. Reduces reliance on mined phosphorus and helps manage sludge disposal and maintenance costs: recovers phosphorus from municipal

Compact, battery-operated, easily transportable and effective solution for treating high pH, sediment-laden blast water from lance-cutting hydrodemolition operations. Ideal for use on roadworks or on schemes where access is limited, such as multi-storey car parks, basements, etc. Can operate continuously at flowrates of up to 5m3/hr and be powered

Remove and compact solids from sludge to reduce solids handling costs and improve downstream treatment efficiency. The Hydro-Sludge® Screen is a superior sludge screening solution for municipal and industrial applications, delivering better performance and easier maintenance. The unit is controlled on pressure utilising pneumatics to control a

Automated rotary screens separate solids from liquids using a rotating filter drum made from stainless steel grate or perforated mesh. Screen apertures range from 0.15 to 6mm, allowing for coarse or fine screening. Continuous rotation for automated solids removal. Self-cleaning action using process fluid

The MNSS™ Combined Screen is designed to capture larger influent materials at the front end of municipal and industrial wastewater treatment processes, thereby protecting and improving the efficiency of downstream treatment systems. The MNSS is capable of handling flows of up to 150 litres/sec, and is suitable for smaller plants and those

Remove more, finer grit to protect downstream equipment, increase plant efficiency and cut maintenance and repair costs. The HeadCell® is a stacked tray grit, sand and solids separator that captures and retains 95% of all grit 75 µm and larger - guaranteed. With a small footprint, no electrical requirements and no moving parts the HeadCell

The iHB integrated lamella clarifier has been designed and developed as an all-in-one treatment system with integrated chemical reaction tank and hopper bottom settlement tank. It provides a reduced footprint and cost compared to the use of individual items, and also reduces installation time on site

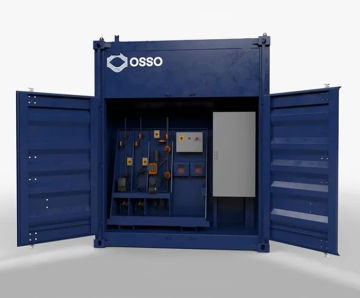

WTS20 is a fully automated chemical dosing system designed to treat water containing suspended solids such as clays and fine silts. Automated pH correction is included. Chemical dosing adjusts to infeed solids and flow, reducing risk of overdosing or underdosing. Discharge water quality is monitored and real-time data is accessible via an online

Hydro MicroScreen™ is a low-energy, small-footprint rotating belt screen that delivers exceptional solids removal from industry process water and wastewater. Maintaining efficiency even at peak design flow rates, it enables industrial and municipal operators to meet discharge requirements, increase efficiency and save money by cutting energy and

Get efficient, economical grit dewatering at smaller plants with no washwater requirements. The SpiraSnail® is a highly efficient screw-type grit dewatering system that delivers 95% removal of all particles 106 µm and larger and 75% of 75-106 µm particles to cut solids handling and disposal costs. Designed to work in combination with a Hydro

Screen CSO flows in a small footprint, maintaining high treatment efficiency even under surcharged and submerged conditions. With the threat of a sewer overflow, you need a powerful and highly efficient screen that will keep flow moving while maintaining high treatment. The Heliscreen® is a compact, powered combined sewer overflow (CSO), sanitary

Aquatreat's static channel screens and sieves provide continuous solids and liquid separation with no power requirement and virtually no maintenance. They are simple prefabricated units with screen and sieve spacing to provide separation for a wide range of applications. All screens and meshes are made of stainless steel, providing long and
