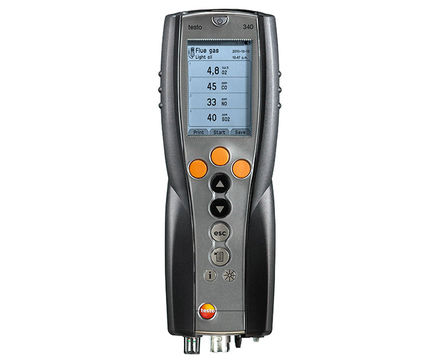

The Testo 340's compact design combined with reliable engineering makes it the ideal analyser for commissioning, service and maintenance work as well as measurements for monitoring purposes.
More reliability, more convenience and even more parameters.
The Testo 340 is equipped with an O2 sensor as standard. Three additional sensors such as CO, COlow, NO, NOlow, NO2 or SO2 can be individually configured at any time. This guarantees flexibility when adapting to changing applications and measurement jobs.
The Testo 340 must be equipped with a second gas sensor otherwise the analyser cannot function.
- The automatic sensor protection:-
The measurement range extension for high gas concentrations protects the CO, COlow, NO, NOlow and SO2 sensors. In measurements on unfamiliar systems or under less ideal operating conditions, unexpectedly high emission values (e.g. CO concentrations up to 50,000 ppm) can occur.
In these cases, the measurement range for a single sensor is automatically increased by 5 times. The sensor is not stressed any more than it would be at low concentrations. The sensors retain their maximum life time. The optional dilution of all sensors (factor 2) offers even more flexibility.
- Big selection of flue gas probes:-
Different probe shaft lengths, diameters and temperature ranges ensure high flexibility for all applications.
The standard pressure and flow-measurement, the automatically flow-controlled gas pump, the replaceable filters for the CO- and NO-sensor, the wide selection of fuels (18 standard and 10 user defined fuels).
- The Testo 340 is the ideal tool for service, maintenance and inspections:-
The Testo 340 allows efficient commissioning, tuning, efficiency optimization and troubleshooting when servicing industrial burners. The robust housing with impact protection enables the use in the rough daily work.
The Testo 340 supports inspections and tuning work on stationary industrial engines. The separate NO and NO2 measurement allows a real NOx measurement. The highly-resistant flue gas probes for industrial engines are specially designed for this application.
To reduce emissions from gas turbines, CO and NO measurements using Testo 340 in low ranges are necessary. The COlow and NOlow sensors are ideally suited to this task.
It is easy to control measurements, read out, transfer and print measurement data. These data interfaces are selectable for easy communication and data transfer:
Bluetooth® 2.0 (up to 10 m without obstruction)USBInfrared interface (Communication with the Testo printer)
With the software “EasyEmission” you are able to read out, edit, archive and manage the data.
(As this instrument is configured to your application, please call our Technical Sales Team for more information on 01420 544 433 ext. 203, Quotations available upon request)
