Gases / parameters Carbon dioxide
Carbon monoxide
Combustible gases
Flammable gases
Hydrocarbon gases
Hydrogen gases
Nitrogen gases
Oxygen
Sulphur gases
Toxic gases
Type Portable
System type Analysers
Features Alarm trip
Datalogging
Price, ex works (£) Call for pricing

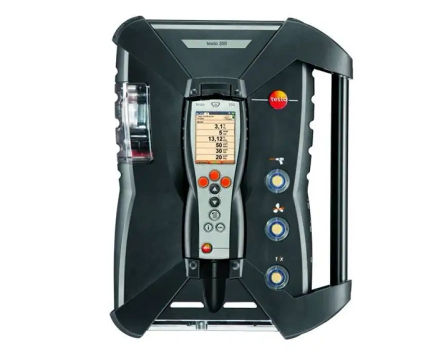

The Testo 350 portable flue gas analyser is the ideal tool for professional flue gas analysis and measures up to six different parameters such as O2, CO, COlow, NO, NOlow, NO2, SO2, CO2, CxHy and H2S. Helpful instrument settings guide you safely through typical measurement tasks such as:

• Flue gas analysis in
Commissioning, setting, optimisation or operational measurements on industrial burners, stationary industrial engines, gas turbines and flue gas purification systems.

Control and monitoring of officially prescribed emission limits in exhaust gas. Function testing of stationary emission measuring instruments. Control and monitoring of defined gas atmospheres in furnace rooms or kilns in different processes.

• Control unit
The control unit is the operating and display unit of the Testo 350. It can be removed and carries out all settings. The presentation of the measurement values takes place via the large colour graphic display. Thanks to the internal memory, measurement data can be transferred from the analyser box to the control unit.

• Advantages of the Testo 350 control unit
Operation of the analyser box and transfer of the measurement data even when the flue gas pipe and the adjustment site are separated, especially helpful for industrial burners, for example. Measurement data can be transferred from the analyser box to the control unit.

• Analyser box
The analyser box contains up to 6 gas sensors, the pumps, the Peltier gas preparation (optional), filters, analysis and storage electronics as well as the mains unit and the Li-ion battery.

The robust housing has built-in impact protection, allowing the analyser box to be used in tough conditions. Downtime due to dirt in the instrument is almost completely eliminated by intelligent design and robustness. Inherently sealed chambers protect the interior of the instrument from dirt from the surroundings. The analyser box can, after programming, independently carry out measurements and store measurement data.

• Measurement range extension
The automatic measurement range extension for unexpectedly high gas concentrations. In measurements on unfamiliar systems, or under less than ideal operating conditions, unexpectedly high emission values (eg CO concentrations up to 50,000 ppm) can occur. In these cases, the measurement range extension is automatically activated.

• Easily accessible service opening
The service opening in the underside of the instrument allows very easy access to all relevant service and wearing parts such as pumps and filters, which can then be quickly cleaned and / or exchanged on site.

• Easy exchange of the gas sensors
The gas sensors are pre-calibrated and can be exchanged, replaced or extended by further measurement parameters without test gas – if necessary directly on site.

To achieve the full potential of the analyser you can choose from a big selection of different flue gas sampling probes for all applications. With our software "EasyEmission" you are able to read out, edit, archive and manage the data.

(As this instrument is configured to your application, please call our Technical Sales Team for more information. Quotations available upon request.)


The Testo 350 portable flue gas analyser is the ideal tool for professional flue gas analysis and measures up to six different parameters such as O2, CO, COlow, NO, NOlow, NO2, SO2, CO2, CxHy and H2S. Helpful instrument settings guide you safely through typical measurement tasks such as:

• Flue gas analysis in
Commissioning, setting, optimisation or operational measurements on industrial burners, stationary industrial engines, gas turbines and flue gas purification systems.

Control and monitoring of officially prescribed emission limits in exhaust gas. Function testing of stationary emission measuring instruments. Control and monitoring of defined gas atmospheres in furnace rooms or kilns in different processes.

• Control unit
The control unit is the operating and display unit of the Testo 350. It can be removed and carries out all settings. The presentation of the measurement values takes place via the large colour graphic display. Thanks to the internal memory, measurement data can be transferred from the analyser box to the control unit.

• Advantages of the Testo 350 control unit
Operation of the analyser box and transfer of the measurement data even when the flue gas pipe and the adjustment site are separated, especially helpful for industrial burners, for example. Measurement data can be transferred from the analyser box to the control unit.

• Analyser box
The analyser box contains up to 6 gas sensors, the pumps, the Peltier gas preparation (optional), filters, analysis and storage electronics as well as the mains unit and the Li-ion battery.

The robust housing has built-in impact protection, allowing the analyser box to be used in tough conditions. Downtime due to dirt in the instrument is almost completely eliminated by intelligent design and robustness. Inherently sealed chambers protect the interior of the instrument from dirt from the surroundings. The analyser box can, after programming, independently carry out measurements and store measurement data.

• Measurement range extension
The automatic measurement range extension for unexpectedly high gas concentrations. In measurements on unfamiliar systems, or under less than ideal operating conditions, unexpectedly high emission values (eg CO concentrations up to 50,000 ppm) can occur. In these cases, the measurement range extension is automatically activated.

• Easily accessible service opening
The service opening in the underside of the instrument allows very easy access to all relevant service and wearing parts such as pumps and filters, which can then be quickly cleaned and / or exchanged on site.

• Easy exchange of the gas sensors
The gas sensors are pre-calibrated and can be exchanged, replaced or extended by further measurement parameters without test gas – if necessary directly on site.

To achieve the full potential of the analyser you can choose from a big selection of different flue gas sampling probes for all applications. With our software "EasyEmission" you are able to read out, edit, archive and manage the data.

(As this instrument is configured to your application, please call our Technical Sales Team for more information. Quotations available upon request.)
