Hawker Electronics




Applications Open channels
Open watercourses
Tanks
System technology Ultrasonic level measurement
Operation Continuous
Features Non contact
Accuracy (±%) Better than 0.25%

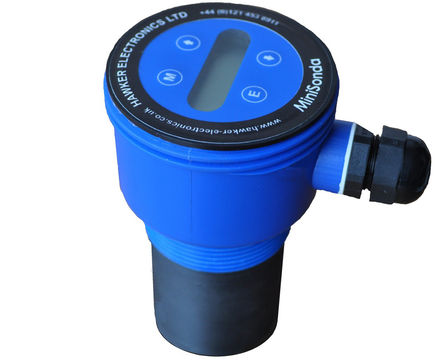

The MiniSonda loop powered ultrasonic transmitter provides accurate, reliable level measurement for liquids and slurries. It operates from a 20-38V DC voltage, enabling the 4-20mA signal produced to transmit over relatively long distances.

  • Range 0.4-8m
  • Fast response to changing liquid levels
  • Simple set up saves commissioning time
  • Low power consumption enables economical operation
  • Polypropylene casing increases chemical resistance
  • Small and compact unit
  • Operating range up to 8 metres
  • Weather resistant to IP68
  • All plastic construction


The MiniSonda loop powered ultrasonic transmitter provides accurate, reliable level measurement for liquids and slurries. It operates from a 20-38V DC voltage, enabling the 4-20mA signal produced to transmit over relatively long distances.

  • Range 0.4-8m
  • Fast response to changing liquid levels
  • Simple set up saves commissioning time
  • Low power consumption enables economical operation
  • Polypropylene casing increases chemical resistance
  • Small and compact unit
  • Operating range up to 8 metres
  • Weather resistant to IP68
  • All plastic construction





Downloads
  • MiniSonda Datasheet
    MiniSonda Datasheet
    1pp 263.05KB
    Download
  • Sondaloop & MiniSonda installation manual
    Sondaloop & MiniSonda installation manual
    18pp 2.2MB
    Download
