Media Process liquids
Raw / grey water
Wastewater / effluent
Suitability Pipes
Flowmeter type Magnetic flowmeters
Characteristics Clamp on
Full bore
Support services Calibration
Commissioning
Design
Installation
Maintenance
Servicing
Repeatability (±%) ± 0.1% (SE56 standard; SE56 blind / ± 0.2% (SE56 basic)
Max. media temperature (deg. C) 60 (SE 56 standard) / 50 ( SE 56 basic) / 40 (SE 56 blind)

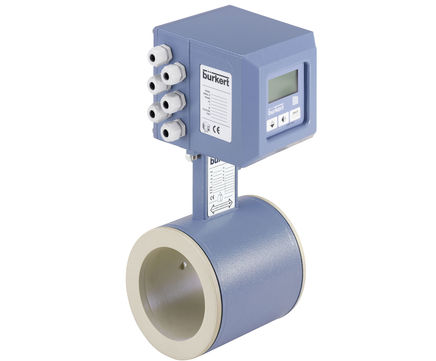

Type 8054/8055 is a full bore mag flowmeter consisting of a magnetic sensor fitting Type S054 or S055 connected to an electronics Type SE56 – blind in compact version, or with display in compact or remote version.

Applications

Type 8054/8055 is used to control high-precision dosing operations and flow measurements in potable water treatment and waste water treatment when combined with a valve as the actuating element.

Key features

  • For applications with liquids with a minimum conductivity of 5 μS/cm
  • Combination of magflowsensor fitting S054 or S055 and electronics SE56
  • Continuous measurement or Batch Control
  • Version without (S054) or with (S055) flanges
  • For water treatment and general purpose applications


Type 8054/8055 is a full bore mag flowmeter consisting of a magnetic sensor fitting Type S054 or S055 connected to an electronics Type SE56 – blind in compact version, or with display in compact or remote version.

Applications

Type 8054/8055 is used to control high-precision dosing operations and flow measurements in potable water treatment and waste water treatment when combined with a valve as the actuating element.

Key features

  • For applications with liquids with a minimum conductivity of 5 μS/cm
  • Combination of magflowsensor fitting S054 or S055 and electronics SE56
  • Continuous measurement or Batch Control
  • Version without (S054) or with (S055) flanges
  • For water treatment and general purpose applications
