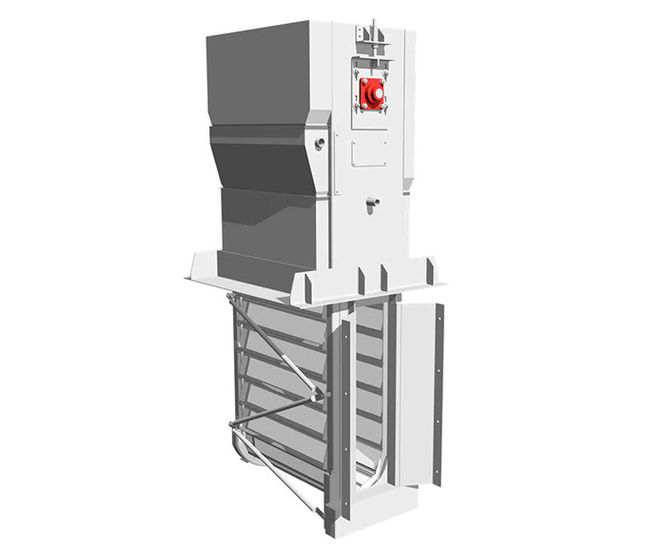

BANDGUARD Centre Flow Band Screen is a high efficiency dual flow travelling fine screen for wastewater treatment plant inlets. Screening is achieved as sewage passes through a vertical band-shaped curtain made from plastic perforated panels and stainless steel. Designed to reduce downstream maintenance by preventing screenings build-up.

  • Dual flow fine screen for wastewater inlet works

  • Ultra-high-molecular-weight polyethylene panels minimise carry over and hair-pinning

  • Integral washing compactor option

  • Efficient side sealing arrangement

  • Maintenance can be carried out above the channel

Applications

  • Inlet works of wastewater treatment plants

Materials

Plastic perforated panels

Stainless steel

Features and Benefits

  • Designed to suit channel of up to 4m wide and up to 20m in depth.

  • Suitable for flows of =40l/sec to =5,250l/sec.

  • Thick UHMW panels with 2mm to 6mm diameter holes prevent carry over

  • and hair-pinning.

  • Highest Screen Capture Ratios (SCR%) of any screen in the world:

    - 3mm perforated panel has a certified average SCR of 95% [UK Water Industry Research (UKWIR) National

    Screen Evaluation Facility (NSEF)].

    - 6mm perforated panel has a certified average SCR of 85% [UKWIR– NSEF].

  • Stainless steel and carbon steel construction.

  • Available with integral washing compactor.

  • Highly efficient side sealing arrangement.

  • All maintenance can be undertaken above coping level.

  • Complete aftermarket support available.
