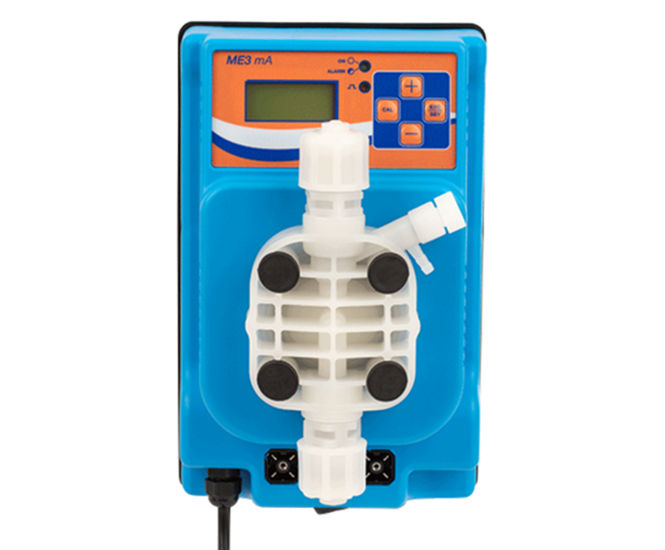

ME3-MA - pvdf digital dosing pump for plc or control instrument use
ME3-MA is a digital solenoid dosing pump with a flow rate adjustable in proportion to a 4–20mA external signal. Delivers between 3L/h and 24L/h with a maximum pressure of 18bar. Made from PVDF and suitable for temperatures up to 65°C. Designed for integration with control instruments or PLCs. Installation kit included: digital dosing pump with
ME3-MA is a digital solenoid dosing pump with a flow rate adjustable in proportion to a 4–20mA external signal. Delivers between 3L/h and 24L/h with a maximum pressure of 18bar. Made from PVDF and suitable for temperatures up to 65°C. Designed for integration with control instruments or PLCs. Installation kit included.
Digital dosing pump with programmable pulse control
Flow rate range of 3L/h to 24L/h
Handles pressures up to 18bar
Made from PVDF for chemical resistance
Operates at up to 150 strokes per minute
Compact design with 3.5kg weight
Compatible with 4–20mA control signals
Supplied with installation kit
Applications
Suitable for automated dosing in process control, water treatment, and integration with PLC systems.
Properties
Max. flow
24 l/h
Max. discharge pressure
18 bar
Pumphead material
PVDF
Max. temperature
65 °C
Number stroke/min
150
Max. drive power
0.06 kW
Weight
3.5 Kg
Materials
Pumphead made from PVDF
Performance
Proportional dosing based on 4–20mA external signal
