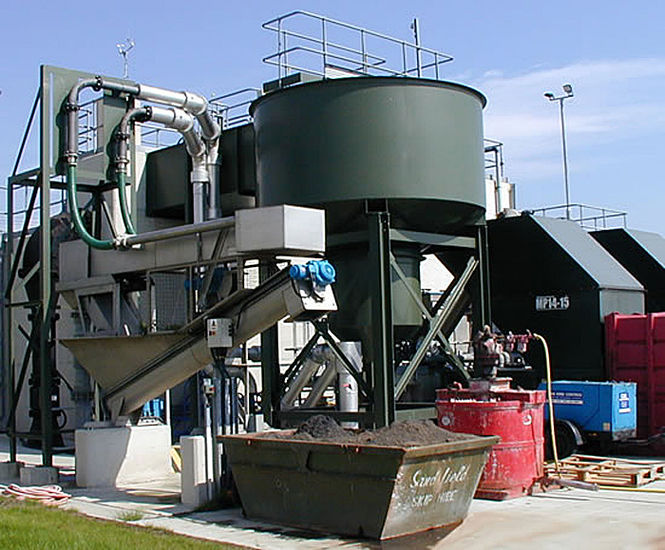

J+A Jeta® grit trap
The J+A Jeta® grit trap provides a high level grit removal within a minimal footprint. It takes full advantage of gravitational settlement, and is highly efficient. With a simple, slow-rotating mechanism, it also uses minimal energy. Specification: Capacity (l/s) up to 3000 Diameter (m) 1.8 – 7.3 Grit removal efficiency 95% of 0.2mm particles at
The J+A Jeta® grit trap provides a high level grit removal within a minimal footprint. It takes full advantage of gravitational settlement, and is highly efficient.
With a simple, slow-rotating mechanism, it also uses minimal energy.
Specification: Capacity (l/s) up to 3000 Diameter (m) 1.8 – 7.3 Grit removal efficiency 95% of 0.2mm particles at 2.65 SG (Industry Std) Collector chamber depth (m) Overall 2.8 to 6.60 Method of grit extraction Airlift or pumped Motor Power (kW) Drive – 0.37 & 0.55, Airblower – 3.0 to 7.5 Material Painted mild steel, 304L or 316L Stainless Steel
