Chemicals / parameters Conductivity
Oxygen
pH
Redox
Temperature
Suitability Process liquids
Type Fixed
System type Transmitters

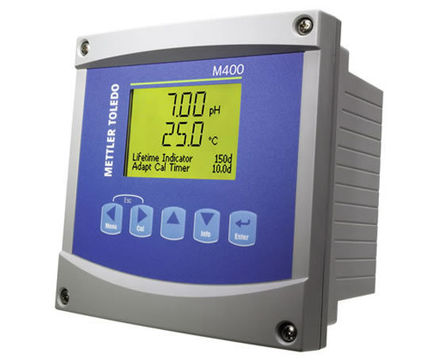

The M400 single channel, multi-parameter transmitter features advanced ISM (intelligent sensor management) technology and supports pH/ORP, oxygen and conductivity measurements.

Intelligent systems for pH and oxygen sensors reduce the maintenance cost and offer diagnostic tools that improve lifetime, performance and reliability of process analytical measurement technology.

The ISM functionalities include a dynamic lifetime indicator, adaptive calibration time and time to maintenance indicator.

These dynamic diagnostic tools enable true predictive maintenance, based upon dynamic process parameters and the current sensor condition.

This allows maintenance to be planned accordingly.

Standard data

  • Dimensions: 144mm high by 144mm wide by 116mm deep
  • Power supply: 100 to 240VAC or 20 to 30VDC
  • Relays: 6
  • Display: backlit LCD, 4 line, 45mm high by 68mm wide
  • PID controller: pulse length, frequency or analog control
  • Languages: English, German, French, Italian and Spanish


The M400 single channel, multi-parameter transmitter features advanced ISM (intelligent sensor management) technology and supports pH/ORP, oxygen and conductivity measurements.

Intelligent systems for pH and oxygen sensors reduce the maintenance cost and offer diagnostic tools that improve lifetime, performance and reliability of process analytical measurement technology.

The ISM functionalities include a dynamic lifetime indicator, adaptive calibration time and time to maintenance indicator.

These dynamic diagnostic tools enable true predictive maintenance, based upon dynamic process parameters and the current sensor condition.

This allows maintenance to be planned accordingly.

Standard data

  • Dimensions: 144mm high by 144mm wide by 116mm deep
  • Power supply: 100 to 240VAC or 20 to 30VDC
  • Relays: 6
  • Display: backlit LCD, 4 line, 45mm high by 68mm wide
  • PID controller: pulse length, frequency or analog control
  • Languages: English, German, French, Italian and Spanish
