Type Rotary distributors
Drive type Electropneumatic
Reaction
Number of arms 2, 3, 4 or 6
Min. influent pipe diameter (mm) 200
Max. influent pipe diameter (mm) 450
Maximum flow rate (litres/s) 175

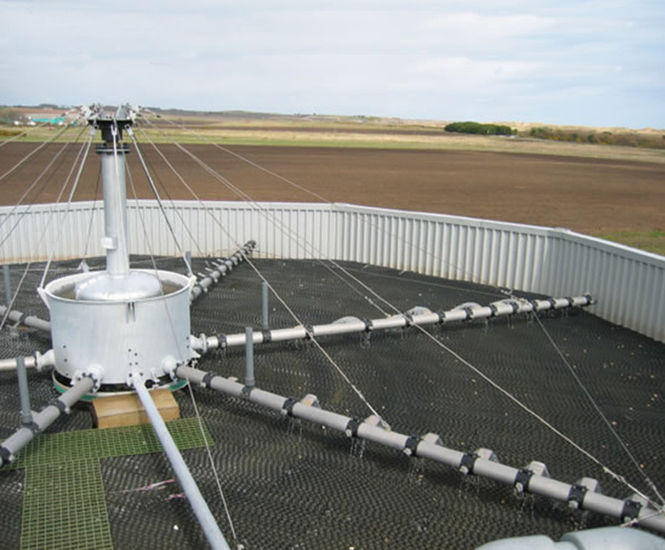

Tubular arm distributors are made from stainless steel with a central reception bowl made from either stainless steel or galvanised mild steel.

They are available in gravity or pump fed, and syphon delivery formats, depending on the available head.

Tubular arm distributors are available with two, three, four or six arms.

The minimum height above the finished media level is 2.3m and the maximum is 4.1m.

A range of finishes is available, including self-colour stainless steel and standard galvanised zinc. Alternative colours in twin pack paint to suit a range of BS codes are also available.


Tubular arm distributors are made from stainless steel with a central reception bowl made from either stainless steel or galvanised mild steel.

They are available in gravity or pump fed, and syphon delivery formats, depending on the available head.

Tubular arm distributors are available with two, three, four or six arms.

The minimum height above the finished media level is 2.3m and the maximum is 4.1m.

A range of finishes is available, including self-colour stainless steel and standard galvanised zinc. Alternative colours in twin pack paint to suit a range of BS codes are also available.
