Aerobic wastewater treatment
(58)
Aerobic wastewater treatment for municipal, commercial and industrial effluent. Package sewage treatment plants, activated sludge, SBR, MBBR and MBR systems, trickling filters and RBCs. Aeration blowers, fine-bubble diffusers, control and monitoring. BOD/COD reduction, nitrification, ammonia removal.
Aerobic wastewater treatment - helping you find the best solution for your project.
Activated sludge treatment for industrial effluent
Puriflo has wide experience with activated sludge treatment systems for treating industrial effluent. The treatment consists of an aeration tank in which a bacterial culture is given oxygen by aeration, enabling it to consume the organic content of the effluent or sewage. After treatment in the aeration tank, the flow passes to a settlement tank
OSSO MBBR 25/18 - modular HDPU bio-reactor for wastewater treatment
MBBR25 and MBBR18 are modular automated biological treatment systems for municipal and industrial wastewater, designed to meet strict AMP8 discharge standards. Each unit uses three aerobic chambers with 40% fill HDPU carrier media at 840m²/m³ surface area, dual perforated diffusers, and integrated automation for efficient BOD5, ammoniacal
Biological filter media for trickling filters
The media used in trickling filters needs a high surface area but must have a sufficiently open structure not to restrict the natural draft air flow. Traditional filters used blast furnace slag but modern plastic media like Biofil and Bioball provide a much higher surface area per unit volume of media with a low air side pressure drop. This makes
Sequential batch reactors
Puriflo has wide experience in building sequential batch reactors, a form of activated sludge treatment in which both aeration and settling take place in the same tank. The process can only be applied in cases where the flow to the plant is suitable or where it is possible to discharge a large volume in a short time. It is possible, by the
Membrane bioreactors
Puriflo's membrane bioreactors feature submerged aerated media, offering high performance with low electrical running costs and minimal maintenance. They are manufactured with flat-sheet membranes and are designed specifically for each application. Services include installation and commissioning
Submerged membrane bioreactor (MBR) - manufacture and install
Colloide manufacture and install submerged membrane bioreactors. The MBRs are the most technically advanced products in their field, giving unparalleled performance in wastewater treatment. Colloide's submerged membrane bioreactor can be installed as part of a new-build plant and integrated to upgrade existing plants, giving an excellent quality
Submerged aerated media for food industry waste water
Puriflo specialises in the design of submerged aerated media plant for treating waste water in food processing industries. Submerged aerated media plant can deal with much higher loadings per cubic metre of tank volume than an activated sludge plant. No daily checks are required on the mixed liquor solids volume. Submerged aerated media plant uses
Membrane Bio Reactor - compact wastewater treatment with fibre membranes
Membrane Bio Reactors (MBR) from MSE Systems combine activated sludge treatment with a membrane liquid-solid separation process. The system uses low pressure Micro Filtration (MF) or Ultra-Filtration (UF) membranes, eliminating the need for clarification and tertiary filtration. MBRs are suitable for municipal and industrial wastewater treatment
Biological filter media for IFAS systems
Integrated fixed film activated sludge (IFAS) process combines biofilm technology and the conventional activated sludge (AS) treatment. IFAS technology is compact, cost effective and retains high biomass concentration in the reactor. This process uses suspended a suspended buoyant media, usually made of polypropylene (PP) or high density
Biological filter media for Submerged Aerated Filters (SAF)
Submerged Aerated Filters consists of a series of cells containing buoyant media retained by a screen with air distribution fed from a blower. Because there is no limitation on air flow through the media, it is possible to use media with higher surface area per unit volume than in trickling filters. Bioball and Biomarble media have proved highly
Moving Bed Biofilm Reactor (MBBR)
The Siltbuster range of Moving Bed Biofilm Reactors (MBBR) is designed to provide packaged plug and play aerobic biological treatment, easy to operate and easy to maintain. Based on established fixed film biological treatment, the MBBR uses media with a specific area of up to 800m2/m3, providing a substantial greater treatment capacity – up to
Random plastic filter media for biological wastewater treatment
Warden Biomedia filter products (like Biopebble, Bioball 220, Biomarble 310 and Bioflow 800) are high-surface-area plastic media designed to host bacteria for water treatment. The media is designed to be a permanent, non-clogging alternative to traditional materials like gravel or slag, with improved removal of pollutants
Activated sludge treatment solutions
Colloide solutions for effluent treatment are determined by site-specific factors including: existing plant size / capacity / condition; raw water quality; required final quality of treated effluent; space available; etc. Activated sludge treatment uses microorganisms cultivated in the treatment process to break down organic matter into carbon
Phragmifiltre® - reedbeds for sewage treatment
Phragmifiltre® is a reedbed technology that provides complete treatment of macerated or raw sewage in a single wetland system, with no pre-settlement and little or no power requirement. The system can treat raw non-settled sewage from 20 to 5,000 PE achieving removal efficiencies of 92% COD, 97% BOD5, and 97% suspended solids
Biological filter media for MMBRs
In moving bed biofilm reactors the buoyant media is free to move within an aerated reaction chamber. The MBBR integrated fixed film activated sludge (IFAS) is essentially an activated sludge suspended growth process but with the biomass fixed to the media. It can perform all the same process variations such as nitrification, denitrification and
HYRATE biofilter containment structures
HYRATE biofilter open-top containment structures are available in square, rectangular, circular or polygonal shapes. They are made from galvanised mild steel and installed on civil engineering structures. HYRATE biofilter containment structures are suitable for use in effluent and wastewater treatment plants. Containment shell sizes in basic
AMBR LE™ - low energy industrial wastewater treatment membrane system
Aquabio AMBR LE™ is a low energy membrane bioreactor system for industrial wastewater treatment, designed for compact installation and reduced energy use. Intermittent back flushing controls membrane fouling, while variable speed pumps adjust energy use to match plant demand. Cross flow ultrafiltration membranes remove suspended solids, producing
Membrane Bioreactor (MBR) - high performance wastewater treatment system
Membrane Bioreactor (MBR) by FLI CAP Technology is an advanced biological wastewater treatment system designed for industrial sites with strict discharge or reuse requirements. Uses submerged ultrafiltration membranes to achieve final solids levels below 10mg/l. Compact, fully automated, and suitable for upgrading existing plants or new- PRODUCT
FLI- CAP Technology
MBR biomembrane treatment
Nijhuis designs and manufactures MBR biomembrane treatment systems. The systems can be equipped with either submersible plate membranes or with externally installed tube membranes. Based on design data, local circumstances and client requirements, Nijhuis will design the most suitable MBR option- PRODUCT
Nijhuis Industries
ECO-SAF submerged aerated filter technology
Within the wastewater industry submerged aerated filter (SAF) technology is seen as the simplest and most cost effective method of treating domestic and commercial sewage / wastewater, particularly for small to medium sized treatment plants where available land is limited, and where full time operational manning would be uneconomical. A well-built

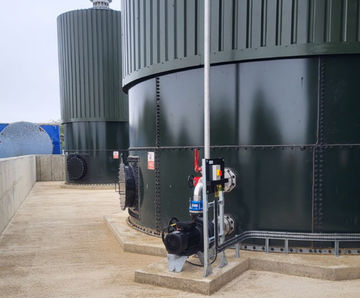

MBBR biological treatment systems for industrial wastewater
Moving Bed Bioreactor (MBBR) is a biological treatment system for industrial effluent, using free-floating, high–surface area media to support dense microbial growth and treat dissolved organics and ammonia in compact tanks. Designed for sites with variable loads or limited space, it delivers stable COD and BOD removal without sludge recycling- PRODUCT
FLI- CAP Technology
Klargester, a Kingspan Environmental brand, has drawn on over 40 years of expertise in treatment plant technology in the development of the Biotec™ 5-7 range. The range is characterised by these key features: High-rate performance across a range of influent and effluent qualities. Low head loss. Minimal footprint area Single-piece tank for rapid- PRODUCT
- Kingspan Water & Energy
Aerobic wastewater treatment - helping you find the best companies for your project.
Warden Biomedia
Manufactures plastic media for biological wastewater treatment with a high surface area and a low air side pressure drop
31 Sundon Industrial Estate, Dencora Way, Luton, LU3 3HPPuriflo
Has a particular expertise in dissolved air flotation (DAF) technology. This, along with Puriflos knowledge and experience with biological treatment systems, enables the company to supply and install several fully integrated, full treatment packages for industrial applications. Each unit is electrically and hydraulically tested prior to dispatch
