Chemicals / parameters Suspended solids
Turbidity
Water quality
Suitability Potable water
Process liquids
Raw water
Wastewater / effluent
System type Sensors
Repeatability (±%) ±0.02 FNU or 2% of reading,
Max. sample temperature (°C) 3 - 40

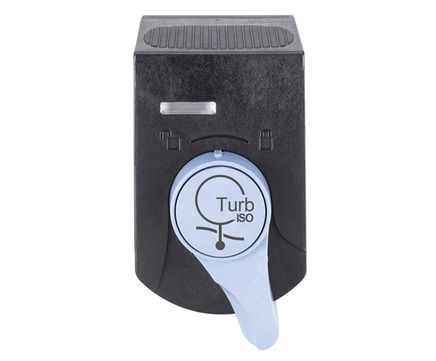

Type MS05 is a turbidity measurement sensor. It is used within the Online Analysis System Type 8905 by being plugged into a spare fluidic backplane slot. The device contains an optical sensor following DIN EN ISO 7027 or optional according to EPA methode 180.1.

Applications

Type MS05 turbidity measurement sensor is used for in-situ environmental or process monitoring, including:

  • Water quality testing and management
  • River monitoring
  • Stream measurement
  • Reservoir water quality testing
  • Groundwater testing
  • Water and wastewater treatment
  • Effluent and industrial control

The turbidity of water needs to be analysed continuously as an indicator for unwanted undissolved content in the water. Measurement prior and post filtration indicates the effect of filtration and may help to optimise the filter backwash process. In the best case, it can lead to water and energy savings.

Operation

The electrical and fluidic connections are made via the connection panel of the system. The sensor cube is communicating via büS, so the recognition at the Online Analysis System is fully automatic. When plugged into a system, the sensor will be found in the list of büS members for further customized adjustments.

Key features

  • Fully compatible with büS systems and a wide range of further analysis sensor cubes
  • Optical sensor according to DIN EN ISO 7027 or EPA Methode 180.1
  • Modular sensor cube for hot swap (exchange during operation)
  • Minimal sample water flow needed


Type MS05 is a turbidity measurement sensor. It is used within the Online Analysis System Type 8905 by being plugged into a spare fluidic backplane slot. The device contains an optical sensor following DIN EN ISO 7027 or optional according to EPA methode 180.1.

Applications

Type MS05 turbidity measurement sensor is used for in-situ environmental or process monitoring, including:

  • Water quality testing and management
  • River monitoring
  • Stream measurement
  • Reservoir water quality testing
  • Groundwater testing
  • Water and wastewater treatment
  • Effluent and industrial control

The turbidity of water needs to be analysed continuously as an indicator for unwanted undissolved content in the water. Measurement prior and post filtration indicates the effect of filtration and may help to optimise the filter backwash process. In the best case, it can lead to water and energy savings.

Operation

The electrical and fluidic connections are made via the connection panel of the system. The sensor cube is communicating via büS, so the recognition at the Online Analysis System is fully automatic. When plugged into a system, the sensor will be found in the list of büS members for further customized adjustments.

Key features

  • Fully compatible with büS systems and a wide range of further analysis sensor cubes
  • Optical sensor according to DIN EN ISO 7027 or EPA Methode 180.1
  • Modular sensor cube for hot swap (exchange during operation)
  • Minimal sample water flow needed
