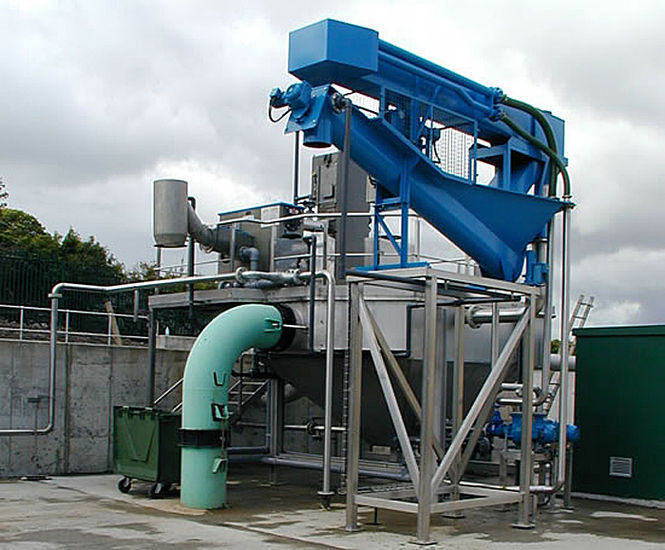

J+A CIS™ combined inlet system
The J+A CIS™ combined inlet system is a high-efficiency screening and grit removal system. It uses the most up-to-date methods available for the pre-treatment of raw sewage effluent, resulting in lower head loss. Suitable for all sizes of treatment works, it has a small footprint and is ideal for small plants. Specification: CIS (J+A Design) up to
The J+A CIS™ combined inlet system is a high-efficiency screening and grit removal system.
It uses the most up-to-date methods available for the pre-treatment of raw sewage effluent, resulting in lower head loss.
Suitable for all sizes of treatment works, it has a small footprint and is ideal for small plants.
Specification: CIS (J+A Design) up to 1000 l/sec Combined Pre Treatment Compact Unit up to 150 l/sec Screenings removal Yes Grit removal Yes Grease Removal Yes (optional) Screen Aperture (mm) 3.0 to 6.0 Grit removal efficiency 95% of 0.2mm grit particles, 2.65 S.G Type of diffuser Coarse bubble Compressor supplied Yes Material 304L or 316L St St Options (J+A CIS) Concrete tanks
