Chemicals / parameters Ammonia
BOD
COD
Conductivity
Dissolved solids
Nitrous compounds
Other
Oxygen
pH
Redox
Suspended solids
Temperature
TOC
Turbidity
Water quality
Suitability Boiler water
Food / drink
Potable water
Process liquids
Raw water
Sludge / slurry / sewage
Wastewater / effluent
Type Fixed
Panel mounted
Wall mounted
System type Monitors
Features Alarm trip
Datalogging
Self cleaning
Waterproof
Weatherproof
Accuracy (±%) Parameter dependent
Repeatability (±%) Parameter dependent
Max. sample temperature (°C) Parameter dependent

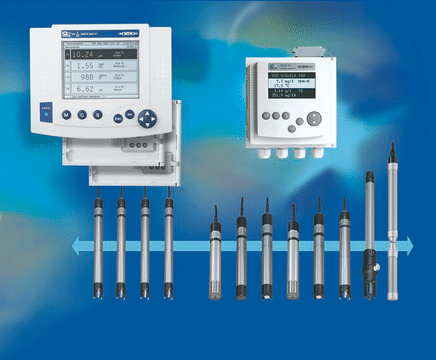

The IQ Sensor Net system is a fixed monitoring system ideally suited for water and waste-water monitoring applications.

Various sensors are available and connect using a common water proof connector.

The instrumentation is weather protected to IP66 clasification allowing external mounting. The design also accommodates panel mounting.

Data is recorded at a user selectable interval and can be down-loaded on a pen-drive using the integral USB communications port. The data can then be exported into Excel or similar for data reporting purposes.

Calibration of the sensors are simply performed using the TC2020-XT menu driven controller which has simply menu prompted interaction.

Key features include:

  • Multiple sensor connection (upto 20 sensors into a single controller)
  • Multiple parameters
  • Multiple displays
  • Digital communcications over long distanes
  • Simple menu programming
  • Modular system
  • Optional air cleaning of sensors
  • Data collection for 525,600 readings
  • Graphical representation available
  • Ammonium & nitrate in a single probe
  • Turbidity, pH, conductivity, redox, DO & temperature
  • UV-Vis scanning probe for nitrate & organic measurements in waste-water
  • Robust sensor technology with diagnostics
  • Analogue (0/4-20mA), realys, Profibus and Modbus communications


The IQ Sensor Net system is a fixed monitoring system ideally suited for water and waste-water monitoring applications.

Various sensors are available and connect using a common water proof connector.

The instrumentation is weather protected to IP66 clasification allowing external mounting. The design also accommodates panel mounting.

Data is recorded at a user selectable interval and can be down-loaded on a pen-drive using the integral USB communications port. The data can then be exported into Excel or similar for data reporting purposes.

Calibration of the sensors are simply performed using the TC2020-XT menu driven controller which has simply menu prompted interaction.

Key features include:

  • Multiple sensor connection (upto 20 sensors into a single controller)
  • Multiple parameters
  • Multiple displays
  • Digital communcications over long distanes
  • Simple menu programming
  • Modular system
  • Optional air cleaning of sensors
  • Data collection for 525,600 readings
  • Graphical representation available
  • Ammonium & nitrate in a single probe
  • Turbidity, pH, conductivity, redox, DO & temperature
  • UV-Vis scanning probe for nitrate & organic measurements in waste-water
  • Robust sensor technology with diagnostics
  • Analogue (0/4-20mA), realys, Profibus and Modbus communications
