Media Process liquids
Suitability Pipes
Flowmeter type Gear flowmeters
Accuracy (±%) = ± 1
Repeatability (±%) = 0.03
Max. media temperature (deg. C) Aluminium/PPS body - 80°C; stainless steel body - 120°C

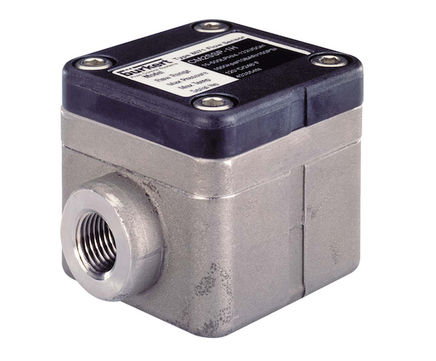

Type 8071 positive displacement sensor is specially designed for measurement or batch control of highly viscous fluids like glue, honey or oil. The low pressure drop and high pressure rating make it suitable for both gravity and pump (in-line) applications.

This sensor can be easily connected to the Type 8025 universal transmitter or the Type 8025 batch controller.

Features

  • Open Collector NPN frequency output and frequency output on Reed contact via 1 metre 5-wire cable with open ends.
  • oval rotor principle - ideal for low flows:
  • very high repeatability
  • high accuracy over a wide range of viscosities and flowrates
  • Electronics for indication, monitoring, transmitting, On/Off control and batch control


Type 8071 positive displacement sensor is specially designed for measurement or batch control of highly viscous fluids like glue, honey or oil. The low pressure drop and high pressure rating make it suitable for both gravity and pump (in-line) applications.

This sensor can be easily connected to the Type 8025 universal transmitter or the Type 8025 batch controller.

Features

  • Open Collector NPN frequency output and frequency output on Reed contact via 1 metre 5-wire cable with open ends.
  • oval rotor principle - ideal for low flows:
  • very high repeatability
  • high accuracy over a wide range of viscosities and flowrates
  • Electronics for indication, monitoring, transmitting, On/Off control and batch control


Interested in this product?
Call 01285 648720
OR



Downloads
  • Measurement devices product range overview
    Measurement devices product range overview
    70pp 8.87MB
    Download
  • Type 8071 positive displacement low flow sensor
    Type 8071 positive displacement low flow sensor
    3pp 1.42MB
    Download



Enquire
