Media Raw / grey water
Suitability Pipes
Flowmeter type Venturi channel flowmeters
Characteristics Insertion
Accuracy (±%) 5
Max. media temperature (deg. C) 120

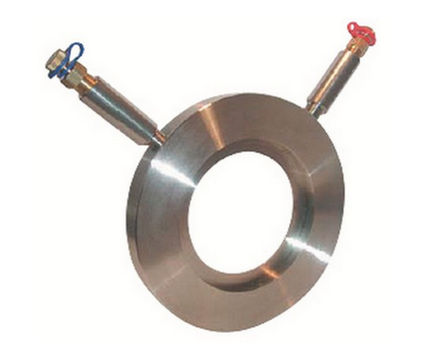

The Herz stainless steel orifice plate is designed in accordance with BS 1042.

Features include:
• Flow performance to BS 7350.
• Flow measurement accuracy within ± 5%.
• Self-sealing pressure test points.
• Flange bolting to BS EN 1092-1.
• Pressure/temperature rating of 16 bar at -10 to 120°C.
• PN 16 pressure rated.


The Herz stainless steel orifice plate is designed in accordance with BS 1042.

Features include:
• Flow performance to BS 7350.
• Flow measurement accuracy within ± 5%.
• Self-sealing pressure test points.
• Flange bolting to BS EN 1092-1.
• Pressure/temperature rating of 16 bar at -10 to 120°C.
• PN 16 pressure rated.
